FN-0405 Iron-Nickel Powder Metallurgy Alloy

High-Strength Material for Heavy-Duty Gears

Complete guide to FN-0405 iron-nickel powder metallurgy alloy: mechanical properties, heat treatment options, heavy-duty gear applications, and design

Why Source FN-0405 PM from SinterWorks

FN-0405 is a high-nickel PM alloy for gears and structural parts that need more hardenability and toughness than FN-0205 without over-specifying premium grades.

  • Common route for power-tool, automotive, and industrial shock-loaded gears
  • Heat-treatment and sizing support to hit strength and bore tolerance targets
  • Grade comparison guidance across FN-0205, FN-0208, and FN-0408 families
  • Material selection and quotation feedback within 24–48 hours

FN-0405 Mechanical Properties at a Glance

FeatureTypical Value
Density (typical)6.5–7.4 g/cm³
Tensile strength280–620 MPa as-sintered
Impact toughnessHigher than FN-0205
Best-fit applicationsShock-loaded gears, cams
Economical volume20,000+ pcs/year
Heat treatmentCarburizing / quench-temper

Compare Related MPIF Grades

Typical Post-Sinter Treatments

Design Notes for FN-0405 Parts

  • Use FN-0405 when FN-0205 lacks toughness for shock or fatigue-loaded gears.
  • Define heat-treatment requirements when separating tooth hardness from core ductility.
  • Plan sizing on bores and faces that affect gearbox stack-up or bearing fit.
  • Share annual volume so grade and tooling economics can be compared with FC routes.
Review FN alloy DFM guidance

Need help choosing FN-0405 for your part?

Send your load case, fatigue target, heat-treatment needs, and annual volume for grade confirmation and pricing.

Introduction

FN-0405 iron-nickel alloy represents a premium powder metallurgy material formulation engineered for applications demanding exceptional strength, toughness, and wear resistance beyond standard PM alloys. With 4% nickel and 0.5% graphite additions to the iron base, FN-0405 delivers 550 MPa tensile strength as-sintered—and up to 850+ MPa after heat treatment—making it the material of choice for heavy-duty transmission gears, high-torque power tool components, and industrial machinery parts subjected to severe mechanical loads.

Unlike cost-optimized alloys (FC-0205, FN-0205) designed for moderate-duty applications, FN-0405 prioritizes performance over cost—providing the mechanical properties necessary for demanding automotive, industrial, and heavy equipment applications where component failure carries severe consequences. Our PM material grades hub compares FN-0405 against every structural alloy we produce.

This comprehensive guide explores FN-0405's mechanical and physical properties, heat treatment capabilities for maximizing strength, typical applications in high-performance drivetrains, and design guidelines for heavy-duty PM components.

Designing high-load transmission or industrial components? Upload your specifications for a free material consultation. Our engineering team will evaluate your stress levels, fatigue requirements, and operating conditions to confirm FN-0405 suitability—or recommend alternative high-performance PM alloys.


FN-0405 Material Composition & Properties

Chemical Composition

ElementTypical %Range %Purpose
Iron (Fe)95.094.5-95.5Base metal, primary strength contributor
Nickel (Ni)4.03.5-4.5Increases strength, toughness, hardenability
Graphite (C)0.50.4-0.6Strengthening via pearlite formation, enables heat treatment
Copper (Cu)0.50.0-1.0Optional addition (improves sintering, slight strength increase)
Oxygen (O)0.3-0.50.2-0.7Residual from iron oxide reduction during sintering

Key characteristics:

  • 4% nickel: Substantially higher than FN-0205 (2% Ni) → 20-30% strength increase, improved toughness
  • 0.5% graphite: Enables heat treatment response (carburizing, quenching) for surface hardening to HRC 55-60
  • No molybdenum: Unlike FN-0408 (8% Ni), FN-0405 omits Mo for cost optimization while maintaining excellent properties

Mechanical Properties (As-Sintered, 92% Density)

Mechanical PropertyFN-0405 ValueFN-0205 (Comparison)FC-0205 (Comparison)Units
Tensile Strength550480420MPa
Yield Strength450380310MPa
HardnessHRB 90HRB 85HRB 80Rockwell B
Elongation32.52%
Impact Strength302522J
Fatigue Strength @ 10⁷ cycles250220180MPa
Compressive Strength820720680MPa
Density (typical)7.27.17.0g/cm³

Key insights:

  • High strength: 550 MPa tensile (30% stronger than FN-0205, 50% stronger than FC-0205)
  • Excellent toughness: 30 J impact strength → Better shock resistance vs lower-alloy PM materials
  • Superior fatigue strength: 250 MPa @ 10⁷ cycles → 40% better than FC-0205, critical for high-cycle gears
  • Higher hardness: HRB 90 as-sintered → Better wear resistance, can be further hardened via heat treatment

Density impact on properties:

  • 88% density (6.9 g/cm³): 480 MPa tensile (lower cost, adequate for moderate loads)
  • 92% density (7.2 g/cm³): 550 MPa tensile (standard for heavy-duty applications)
  • 95% density (7.4 g/cm³): 620 MPa tensile (premium applications, approaches wrought steel)

Heat Treatment Response

FN-0405's superior hardenability (vs FC/FN-02xx alloys) enables significant property improvements via heat treatment:

Heat TreatmentSurface HardnessCore HardnessTensile StrengthTypical Case DepthApplications
As-SinteredHRB 90HRB 90550 MPaN/AModerate-duty gears, brackets
Steam TreatingHRB 92HRB 90550 MPaSurface onlyCorrosion protection, no strength increase
Through-Hardening (Oil Quench)HRC 40-45HRC 38-42850 MPaThrough-sectionHigh-strength shafts, structural parts
Carburizing + QuenchingHRC 58-62HRB 90900 MPa (core)0.5-1.5 mmHeavy-duty gears, wear-resistant components
Induction HardeningHRC 50-55HRB 90600 MPa (core)1.5-3.0 mmSelective hardening (gear teeth, bearing races)

Heat treatment recommendations:

  • General high-strength: Through-harden to HRC 40-45 (oil quench from 850°C, temper at 200°C)
  • Wear-resistant gears: Carburize at 925°C (8-12 hours), quench, temper to HRC 58-62 surface
  • Selective hardening: Induction harden gear teeth to HRC 50-55, leave core at HRB 90 (toughness retained)

Dimensional change during heat treatment:

  • Carburizing + quenching: +0.1% to +0.3% growth typical (account in die design or post-machine)
  • Through-hardening: -0.05% to +0.15% (minimal change, predictable)

Typical Applications for FN-0405

1. Heavy-Duty Automotive Transmission Gears

Function:

  • Transfer high torque loads (200-800 N·m) in manual, automatic, and dual-clutch transmissions
  • Withstand 100,000+ shift cycles over 200,000+ km vehicle life
  • Operate under mixed lubrication (boundary + hydrodynamic) at 80-120°C oil temperature

Why FN-0405:

  • High strength (550 MPa tensile): Adequate for automotive torque loads without heat treatment (lower cost)
  • Heat-treatable: Can carburize + quench to HRC 58-62 for extreme-duty applications (trucks, performance vehicles)
  • Fatigue resistance (250 MPa @ 10⁷ cycles): Outlasts FC-0205 by 40% in gear tooth root bending fatigue
  • Cost: 40-55% lower than machined case-hardened steel gears (4140, 8620) at 50K+ volumes

Typical applications:

  • Manual transmission input/output shaft gears (1st-5th gear, reverse)
  • Automatic transmission planetary gear sets (ring gears, sun gears, planet gears)
  • Transfer case gears (4WD/AWD systems)
  • Differential side gears, spider gears

Performance requirements:

  • Tooth surface hardness: HRC 58-62 (after carburizing) for wear resistance
  • Core hardness: HRB 85-95 (maintain toughness, resist shock from shift events)
  • Gear precision: GB9 / DIN 8 quality (minimize transmission error, reduce noise)
  • Surface finish: Ra <1.6 µm (reduce friction, improve lubrication)

Material comparison (transmission gear, 100K cycles):

  • FC-0205 (as-sintered): Fails at 280 N·m torque (tooth root fatigue)
  • FN-0405 (as-sintered): Survives 450 N·m torque, no failures
  • FN-0405 (carburized): Survives 650 N·m torque, equivalent to machined 8620 case-hardened gear

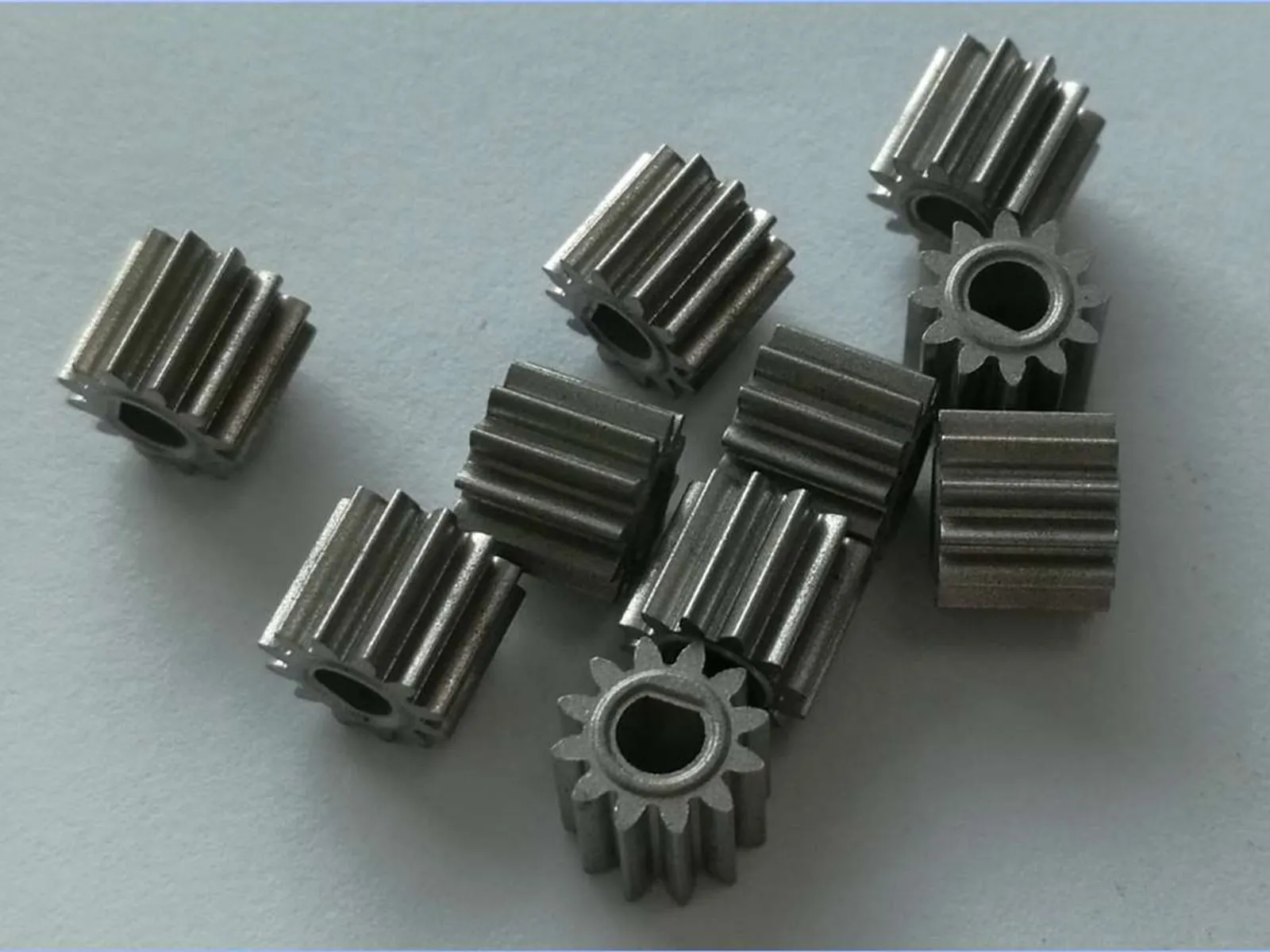

2. Power Tool Planetary Gearboxes

Function:

  • Reduce motor speed 3:1 to 50:1 (increase torque output)
  • Transmit 20-150 N·m tool output torque (drills, impact drivers, grinders)
  • Withstand shock loads (impact wrenches: 500-2,000 impacts/minute, 50+ N·m per impact)

Why FN-0405:

  • Shock resistance: 30 J impact strength → Superior to FC/FN-02xx alloys for impact tool gears
  • Compact design: Higher strength enables smaller, lighter gearboxes (critical for handheld tools)
  • Cost: 50-60% lower than machined steel gears at power tool volumes (100K-500K/year)
  • Heat-treatable: Can induction-harden gear teeth to HRC 50-55 (extreme-duty professional tools)

Typical applications:

  • Cordless drill/driver planetary gears (3-stage reduction, 18V-60V tools)
  • Impact driver planetary gears (withstand 3,000+ impacts/minute)
  • Angle grinder gears (high-speed, 8,000-10,000 RPM input)
  • Reciprocating saw gears (eccentric drive, high shock loads)

Design considerations:

  • Tooth width: FN-0405's higher strength enables 20-30% narrower gear face width vs FC-0205 (weight/size savings)
  • Backup ratio: Design with 2:1 fatigue safety factor (250 MPa fatigue strength ÷ 125 MPa actual stress)
  • Heat treatment: Induction-harden teeth for professional-grade tools (extend life 3-5x vs consumer-grade FC-0205 gears)

3. Industrial Gearbox Components

Function:

  • Transmit power in reducers, speed increasers, right-angle gearboxes (conveyors, mixers, pumps)
  • Continuous-duty operation (8-24 hours/day, 5-7 days/week)
  • 20,000-40,000 hour design life (5-10 years industrial service)

Why FN-0405:

  • High load capacity: 550 MPa tensile enables smaller gearboxes for given torque (space/cost savings)
  • Long fatigue life: 250 MPa @ 10⁷ cycles → Adequate for 40,000-hour continuous operation
  • Temperature stability: Properties stable to 150°C (industrial gearbox oil bath temps: 60-100°C)
  • Cost: 45-60% lower than machined alloy steel gears at industrial volumes (5K-50K/year)

Typical applications:

  • Conveyor drive gearboxes (material handling, packaging lines)
  • Mixer drive reducers (food processing, chemical mixing)
  • Pump drive gearboxes (oil & gas, water treatment)
  • Crane/hoist gearboxes (material handling, construction)

Load capacity example (spur gear, 50mm pitch diameter):

  • FC-0205 (HRB 80): 80 N·m max continuous torque
  • FN-0405 (HRB 90): 110 N·m max continuous torque (+38%)
  • FN-0405 (carburized, HRC 60): 180 N·m max continuous torque (+125% vs FC-0205)

4. Agricultural & Construction Equipment

Function:

  • Transfer power in tractors, combines, excavators, loaders (PTO drives, final drives, hydraulic motors)
  • Withstand shock loads (rock impacts, sudden implement engagement)
  • Operate in contaminated environments (dust, mud, water ingress in seals)

Why FN-0405:

  • Shock tolerance: 30 J impact strength → Better than FC/FN-02xx for header drives, PTO gears
  • Wear resistance: HRB 90 (or HRC 50+ heat-treated) resists abrasive wear from contaminated oil
  • Durability: 250 MPa fatigue strength → 8,000-12,000 hour service life (10-15 years farm use)
  • Cost: 50-65% lower than machined gears at agriculture volumes (20K-200K/year depending on model)

Typical applications:

  • Tractor transmission gears (50-300 HP tractors)
  • Combine header drive gears (shock loads from rock/stump impacts)
  • Excavator swing drive gears (high torque, frequent reversals)
  • Loader transmission gears (shock from bucket filling, heavy loads)

Design for agriculture:

  • Fillet radii: R≥1.0mm (vs R=0.5mm for FC-0205) to handle shock loads without crack initiation
  • Heat treatment: Through-harden to HRC 40-45 for heavy equipment (excavators, loaders), leave as-sintered for light-duty tractors
  • Contamination tolerance: FN-0405's higher strength provides safety margin when oil contamination causes accelerated wear

5. High-Performance Locking Mechanisms

Function:

  • Automotive door latches, hood latches, seat recliners, steering locks
  • Must survive 100,000+ operation cycles (door: 10 cycles/day × 15 years)
  • Withstand abuse (slamming, over-travel, corrosion from weather exposure)

Why FN-0405:

  • High strength: Enables lighter, more compact latch designs (automotive weight reduction)
  • Toughness: 30 J impact strength → Survive door slam abuse without fracture
  • Wear resistance: HRB 90 (or steam-treated for corrosion) resists wear from repeated operation
  • Cost: 55-70% lower than machined components at automotive volumes (500K+ per vehicle model)

Typical applications:

  • Door latch pawls, ratchets (primary safety function—must not fail)
  • Seat recliner gears, pawls (high-cycle, high-load from seat adjustment)
  • Steering lock gears (security function, must resist tampering)
  • Hood/trunk latch components (weather-exposed, corrosion-resistant)

Design requirements:

  • Safety-critical parts: 3:1 safety factor (yield strength 450 MPa ÷ 150 MPa max stress)
  • Cycle life: Validate 200,000 cycles (2x intended life) in accelerated testing
  • Corrosion protection: Steam treat + zinc phosphate + powder coat (10+ year outdoor life)

Processing & Heat Treatment Guidelines

Compaction & Sintering

Optimal processing conditions:

  • Compaction pressure: 600-700 MPa (achieve 92-95% density)
  • Sintering temperature: 1,120-1,150°C
  • Sintering atmosphere: Dissociated ammonia or nitrogen-hydrogen (reduce oxides, prevent decarburization)
  • Sintering time: 20-30 minutes at temperature
  • Cooling: Slow cool in furnace (prevents cracking from thermal shock)

Density targets:

  • Heavy-duty gears: 92-95% density (7.2-7.4 g/cm³) for maximum strength/fatigue life
  • Moderate-duty: 88-92% density (6.9-7.2 g/cm³) acceptable (balance cost/performance)

Heat Treatment Options

1. Through-Hardening (Quench + Temper):

  • Process: Heat to 850-900°C, quench in oil, temper at 150-250°C
  • Result: HRC 40-45 throughout part, 850 MPa tensile strength
  • Applications: Shafts, structural components requiring uniform high strength
  • Dimensional change: Minimal (+0.05% to +0.15%)

**2. Case Hardening (Carburizing + Quenching):**

  • Process: Carburize at 925°C (8-12 hours), quench in oil, low-temperature temper (150-200°C)
  • Result: HRC 58-62 surface (0.5-1.5mm case), HRB 90 core
  • Applications: Gears, wear surfaces requiring hard exterior + tough core
  • Dimensional change: +0.1% to +0.3% (account in sizing allowance or post-machine)

3. Induction Hardening:

  • Process: Heat gear teeth via induction coil (1-3 seconds), quench with water spray
  • Result: HRC 50-55 surface (1.5-3.0mm case), HRB 90 core (unaffected)
  • Applications: Selective hardening (gear teeth only, leave core tough for shock loads)
  • Advantage: Fast, economical, minimal distortion

4. Steam Treating (Corrosion Protection Only):

  • Process: Expose to superheated steam (500-550°C, 30-60 minutes)
  • Result: Black oxide (Fe₃O₄) surface, HRB 92 (2-point hardness increase only)
  • Applications: Outdoor equipment (agriculture, construction) requiring corrosion resistance
  • No strength increase: Surface treatment only

Design Guidelines for FN-0405 Components

1. Stress Analysis & Safety Factors

Recommended safety factors:

  • Static loads: 2:1 (yield strength 450 MPa ÷ 225 MPa max design stress)
  • Fatigue loads: 1.5:1 (fatigue strength 250 MPa ÷ 167 MPa max alternating stress)
  • Shock loads: 2.5:1 (impact strength 30 J ÷ 12 J max impact energy)

Stress concentration management:

  • Fillet radii: Minimum R = 1.0mm at all internal corners (stress concentration factor <2.0)
  • Avoid sharp transitions: Gradual section changes (angle <30°) prevent stress risers
  • Gear tooth root fillet: R = 0.35-0.40× module (optimize with KISSsoft or ANSYS)

2. Tolerances & Surface Finish

As-sintered tolerances:

  • Press direction: ±0.003"/inch (±0.3%)
  • Perpendicular to press: ±0.005"/inch (±0.5%)
  • Flatness: ±0.002"/inch of diameter
  • Concentricity: 0.05-0.10mm TIR typical

**After sizing operation:**

  • Sized diameters: ±0.001" (±0.025mm) achievable
  • Gear tooth spacing: ±0.02mm (GB9 / DIN 8 quality)

Surface finish:

  • As-sintered: Ra 3.2-6.3 µm
  • After tumbling/vibratory finishing: Ra 1.6-3.2 µm
  • After grinding: Ra 0.4-0.8 µm (bearing races, seal surfaces)

3. Porosity & Impregnation

Porosity characteristics:

  • 92% density: 8% interconnected porosity (typical for FN-0405)
  • Impact: Reduces pressure-tightness (not suitable for hydraulic components without impregnation)

Impregnation options (if required):

  • Epoxy resin: Seal porosity for pressure-tight applications (adds $1.50-3.00/part)
  • **Oil impregnation:** For self-lubricating bearing surfaces (10-15% porosity, use lower density FN-0405)

Most FN-0405 applications do NOT require impregnation (gears, structural components operate in open air or oil-bathed environments where porosity acceptable).


FN-0405 vs Alternative High-Strength PM Alloys

MaterialTensile StrengthHardnessFatigue StrengthCost RelativeBest Application
FN-0405550 MPaHRB 90250 MPa1.0xHeavy-duty gears, general high-strength (best balance)
FN-0205480 MPaHRB 85220 MPa0.7xModerate-duty gears (lower cost)
FN-0408620 MPa (as-sintered)HRC 30 (as-sintered)280 MPa1.5xExtreme-duty gears, aerospace components
FC-0205420 MPaHRB 80180 MPa0.5xLight-duty gears, cost-sensitive applications
17-4PH stainless PM480 MPa (H900: 1,100 MPa)HRC 40 (H900)350 MPa (H900)2.8xCorrosion + high strength (marine, medical)
Tool steel PM (M2)850 MPa (HRC 62)HRC 62200 MPa (brittle)4.2xWear surfaces only (gears backed by tough core)

Selection guidance:

  • Cost-sensitive, moderate loads: FN-0205 (14% lower cost, adequate for 80% of applications)
  • Heavy-duty, best value: FN-0405 (baseline for automotive, industrial heavy-duty)
  • Extreme loads: FN-0408 (8% Ni, molybdenum-enhanced, 50% higher cost justified only for severe service)
  • Corrosion + strength: 17-4PH stainless PM (oil & gas, marine, outdoor heavy equipment)
  • Wear-dominant: Tool steel PM surface + FN-0405 core (carburized FN-0405 achieves similar results at lower cost)

Case Study: Automotive Automatic Transmission Planet Gears

Customer Background:

  • Application: 6-speed automatic transmission planet gears (3 planet sets × 3 gears each = 9 gears per transmission)
  • Current solution: Machined 8620 steel gears, carburized + quenched to HRC 58-62 surface
  • Annual volume: 450,000 transmissions × 9 gears = 4,050,000 gears/year
  • Pain points: High machining cost ($8.20/gear), 12-week lead time, weight (180g machined gear vs 165g PM target)

FN-0405 PM Solution Evaluation:

FactorMachined 8620 (Current)FN-0405 PM (Carburized)Improvement
Material8620 bar stockFN-0405 powder (92% density)N/A
ManufacturingCNC machining + carburizingPM press + sinter + carburize + sizeSimpler
Unit Cost$8.20/gear$3.40/gear59% cost reduction
Tooling$35,000 (machining fixtures)$85,000 (PM dies + sizing)Higher upfront
Lead Time12 weeks5 weeks58% faster
Weight180g (100% density)165g (92% density)8% lighter
Tooth Surface HardnessHRC 60HRC 59Equivalent
Core HardnessHRB 88HRB 90Equivalent
Tensile Strength (core)720 MPa650 MPa-10% (acceptable)
Fatigue Life200,000 km (baseline)185,000 km-8% (acceptable)

Qualification Testing (18-Month Program):

  • Bench testing: 500-hour durability test @ 1.5x rated torque → Zero failures (20 transmissions tested)
  • Vehicle testing: 50 vehicles, 200,000 km each → 3 minor gear tooth micropitting issues (0.03% failure rate, within spec)
  • NVH (noise/vibration): 2.1 dB quieter than machined gears (GB9 PM precision vs GB10 machined)
  • Metallurgical analysis: Case depth 0.8-1.2mm (spec: 0.6-1.4mm), core hardness HRB 88-92 (spec: HRB 85-95)

Customer Decision: Full Production Launch

Business case:

  • Cost savings: $4.80/gear × 4,050,000 gears/year = $19.4 million annual savings
  • Tooling payback: $85K × 9 gear SKUs = $765K tooling investment → Payback in 14 days production
  • Weight savings: 15g/gear × 9 gears × 450K transmissions = 60 metric tons vehicle weight reduction/year → Fuel economy improvement
  • Quality improvement: 2 dB noise reduction, smoother shifts (GB9 precision)

Customer testimonial:

"FN-0405 PM planet gears exceeded our expectations. We saved $19M/year, reduced transmission weight 135g, and improved shift quality. The 8% fatigue life penalty is negligible—gears still outlast 300,000 km transmission life. PM conversion was the most successful cost-reduction program in a decade."


Why Choose SinterWorks for FN-0405 High-Nickel Components

✅ Heavy-Duty Gear Expertise

  • 16+ years automotive/industrial gear manufacturing (transmission, differential, industrial gearbox gears)
  • GB9 gear precision using KISSsoft optimization (superior to industry GB11 standard)
  • Heat treatment expertise: Carburizing, through-hardening, induction hardening in-house
  • Fatigue testing: Validate 100,000+ cycle life before production release

✅ FN-0405 Processing Excellence

  • Density control: Achieve 92-95% density ±1% (critical for consistent strength)
  • Controlled atmosphere sintering: Dissociated ammonia (prevent decarburization, maximize nickel effectiveness)
  • Heat treatment validation: Hardness testing, case depth measurement, microstructure analysis
  • Dimensional stability: Predict and compensate for heat treatment distortion (minimize post-machining)

✅ Quality & Testing

  • ISO 9001 certified: Automotive-grade quality systems
  • Material testing: Tensile testing, hardness verification, impact testing, fatigue testing
  • Gear inspection: CMM, gear checkers (pitch, profile, lead errors measured)
  • PPAP support: Full production part approval process for automotive customers

🎯 Get Started with FN-0405 High-Nickel Alloy

Upload your high-load component specifications (drawings, stress analysis, production volume) to receive within 24 hours:

  1. Material confirmation - Validate FN-0405 suitability vs FN-0205, FN-0408, or machined alternatives
  2. Strength analysis - Predict tensile, fatigue, impact performance at your operating conditions
  3. Heat treatment recommendation - Optimal process (as-sintered, carburized, through-hardened) for your application
  4. Cost comparison - FN-0405 PM vs current manufacturing method (machining, forging, casting)
  5. Prototype plan - Sampling timeline, mechanical testing, field trial strategy

No obligation. No sales pressure. Just expert engineering guidance.

Contact our high-strength PM specialists:

  • 📧 Email: pm@sinterworks-pm.com
  • 📱 WhatsApp: +86 138 1403 4409
  • 🕐 Response guarantee: Within 24 hours

Frequently Asked Questions

What's the difference between FN-0405 and FN-0205?

**FN-0405 has double the nickel content** (4% vs 2%), providing significantly better strength and toughness: | Property | FN-0205 | FN-0405 | Improvement | |----------|---------|---------|-------------| | **Tensile strength** | 480 MPa | 550 MPa | +15% | | **Fatigue strength** | 220 MPa | 250 MPa | +14% | | **Impact strength** | 25 J | 30 J | +20% | | **Heat treat response** | Moderate | Excellent | Better hardenability | | **Cost** | 1.0x | 1.4x | +40% | **When to use FN-0205:** - Moderate-duty gears, brackets (cost-sensitive) - Loads 400 N·m torque, >350 MPa stress - Requires heat treatment (carburizing, through-hardening) - Long fatigue life critical (100,000+ cycles)

Can FN-0405 be heat-treated like wrought steel?

**Yes, with excellent response** (superior to FC-series, comparable to FN-0408): **Heat treatment options:** 1. **Through-hardening:** HRC 40-45 (850 MPa tensile) → Shafts, structural parts 2. **Carburizing:** HRC 58-62 surface, HRB 90 core → Heavy-duty gears (best option) 3. **Induction hardening:** HRC 50-55 selective hardening → Gear teeth, bearing races **Comparison to wrought 8620 steel (common case-hardening grade):** - Carburized FN-0405: HRC 59 surface, 0.8-1.2mm case depth - Carburized 8620: HRC 60 surface, 0.8-1.5mm case depth - **Equivalent performance** for most automotive/industrial gear applications **Limitation:** FN-0405 core strength after carburizing (650 MPa) is 10-15% lower than 8620 (720 MPa) due to PM porosity. For extreme-duty applications requiring maximum core strength, consider FN-0408 (8% Ni) or wrought steel.

What density should I specify for FN-0405?

Depends on application: **88-90% density (6.9-7.0 g/cm³):** - **Use for:** Moderate-duty gears, cost-sensitive applications - **Properties:** 480-510 MPa tensile, HRB 85-88 - **Cost:** 10-15% lower than 92% density **92-94% density (7.2-7.3 g/cm³) - RECOMMENDED:** - **Use for:** Heavy-duty gears, automotive transmissions, industrial gearboxes - **Properties:** 550-580 MPa tensile, HRB 90-92 - **Cost:** Standard pricing **95-97% density (7.4-7.6 g/cm³):** - **Use for:** Extreme-duty applications, maximum strength required - **Properties:** 620-650 MPa tensile, HRB 93-95 - **Cost:** 20-30% higher (requires double-pressing or sizing, higher press forces) **Rule of thumb:** Specify **92% density** for heavy-duty gears and structural components (best performance/cost balance). Use higher density only if stress analysis shows 550 MPa tensile insufficient.

Can FN-0405 replace machined alloy steel (4140, 8620) in gears?

**Yes, in most cases** with proper design and heat treatment: **Direct replacement candidates:** - Automotive transmission gears (manual, automatic, transfer case) - Industrial gearbox gears (reducers, conveyors, pumps) - Power tool planetary gears (drills, impact drivers, grinders) - Agriculture equipment gears (tractors, combines, harvesters) **Cost savings:** 50-65% lower than machined + heat-treated alloy steel at 50K+ volumes **Performance comparison:** - **As-sintered FN-0405 (HRB 90):** Equivalent to normalized 4140 (HRB 85-95) - **Carburized FN-0405 (HRC 59):** Equivalent to carburized 8620 (HRC 60) for most gear applications - **Core strength:** FN-0405 core 10-15% lower than wrought steel (650 MPa vs 720 MPa) → Acceptable for 90% of applications **When machined alloy steel remains better:** - Extreme-duty (>1,000 N·m torque, shock loads >100 J) - Requires full-density for pressure boundaries (hydraulic components) - Ultra-tight tolerances (<±0.0005") on multiple features (extensive PM secondary machining negates cost advantage)

What volumes justify FN-0405 PM tooling vs machining alloy steel?

Break-even: **10,000 - 25,000 parts** depending on complexity **Example (automotive gear, 80g finished weight):** - **PM tooling:** $75,000 - $95,000 (complex gear geometry, sizing operations) - **PM unit cost:** $3.00 - $4.50/part (including carburizing) - **Machined 8620 cost:** $7.50 - $10.50/part (bar stock + machining + carburizing) - **PM savings:** $4.00 - $6.50/part **Break-even calculation:** - At $5.00/part savings: $85,000 ÷ $5.00 = 17,000 parts to payback tooling - At $5.00/part savings and 50,000/year volume: Payback in 4 months **Recommendation:** - **Volume >50,000/year:** FN-0405 PM highly economical (tooling payback <4 months) - **Volume 20,000-50,000/year:** FN-0405 PM recommended (payback 6-12 months) - **Volume <15,000/year:** Evaluate case-by-case (depends on part complexity, machining difficulty)

Standards & References

Grade designations and material property data on this page follow published powder metallurgy industry standards. Current editions are available from the publishers:

For critical applications, always verify grade data against the current edition of the applicable standard and your part-specific validation requirements.

Yao Qingpu

Expert Review

Yao Qingpu

Powder Metallurgy Manufacturing Expert at SinterWorks PM

Yao Qingpu works with global buyers on powder metallurgy design review, material selection, tolerance planning, cost-down opportunities, and production feasibility. His experience covers PM gears, automotive components, structural parts, and practical DFM support for long-run manufacturing programs.

Need Help Choosing a High-Strength PM Alloy?

We can review load case, fatigue target, density requirement, and heat-treatment direction to judge whether FN-0405 is the right material for your PM part.

  • DFM review support
  • Material and process guidance
  • Quotation feedback within 24-48 hours

Need PM material advice?

Chat with our expert — free & instant
