Structural Powder Metallurgy Parts

Sintered Metal Structural Components

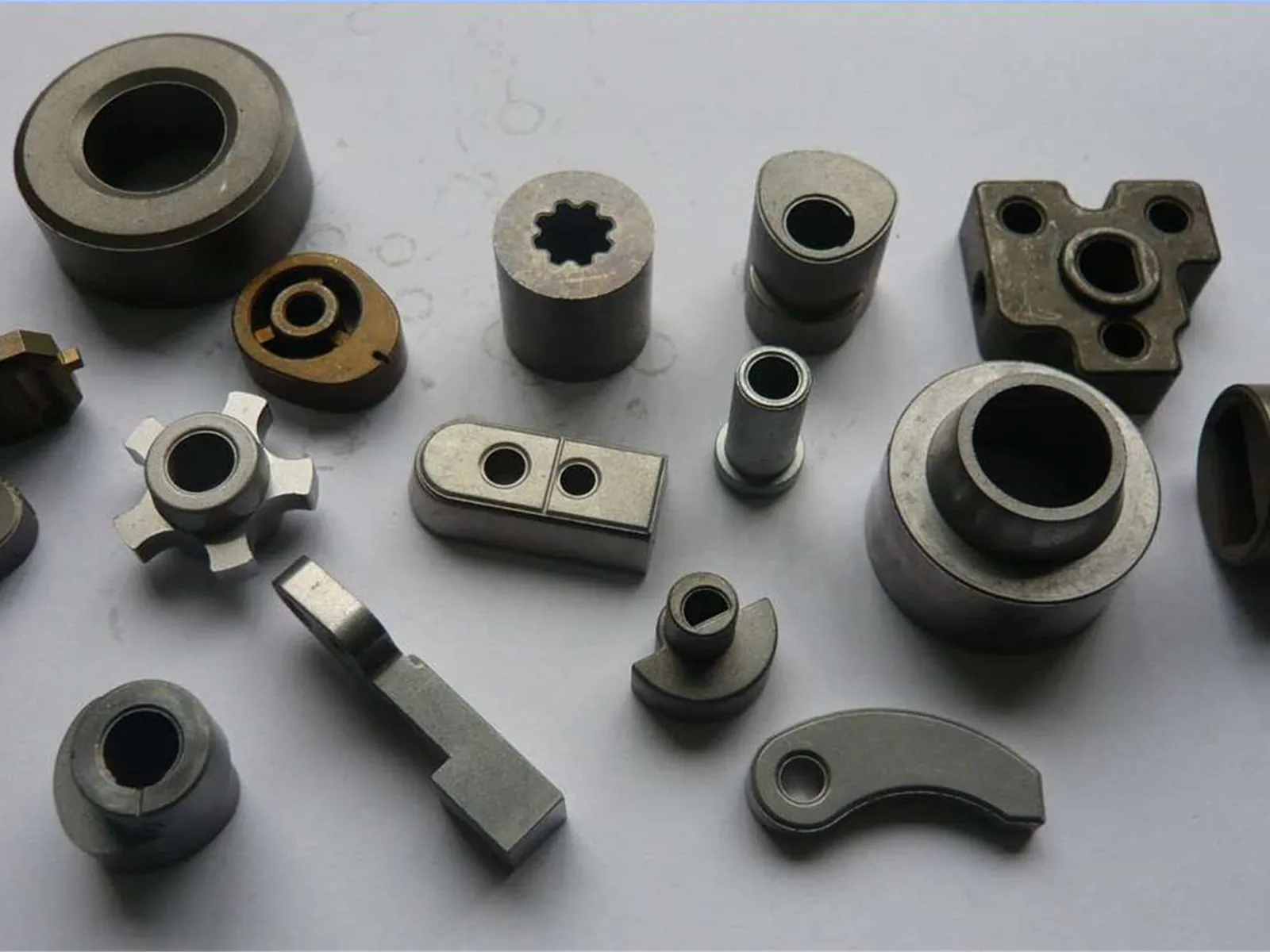

Structural powder metallurgy parts including brackets, hubs, cams, flanges, and complex structural components. Net-shape sintered metal parts for automotive,

Why SinterWorks for Structural PM Parts

We manufacture structural PM hubs, brackets, cams, and bearing housings with DFM support before tooling is released.

  • 36 presses from 6T to 400T for prototypes through high-volume programs
  • ISO 9001 quality systems with PPAP support for automotive programs
  • DFM review and quotation feedback within 24–48 hours
  • Sizing, steam treatment, machining, and inspection in one workflow

Typical Structural PM Specifications

FeatureTypical Value
Best-fit annual volume5,000+ pcs/year
As-sintered density6.8–7.4 g/cm³
Typical tensile strength350–750 MPa
Dimensional tolerance±0.05–0.10 mm
Sample lead time2–3 weeks
Production lead time4–6 weeks

Common Material Routes

Finishing Options

DFM Guidelines for Structural PM

  • Avoid sharp internal corners; use generous fillets to reduce stress and tooling wear.
  • Keep uniform wall thickness where possible to control density variation and distortion.
  • Define load direction and critical mating surfaces early for material and sizing planning.
  • Plan draft and parting lines before locking bracket or housing geometry.
Read the full DFM guide

Need a structural PM feasibility review?

Send your drawing, annual volume, and load case. We can recommend material grade, tolerance strategy, and tooling direction.

Introduction

Structural powder metallurgy parts are sintered metal components that carry mechanical load, transmit force, or provide positional reference in an assembly. They are not simply shaped metal — they must meet dimensional, strength, and surface requirements that allow them to function reliably across the expected service life.

PM is well-suited to structural parts because the process produces near-net-shape components with consistent density and geometry across high production volumes. Parts that would require significant machining from bar stock are often produced more cost-effectively through die compaction and sintering.

This page works through the five structural families we produce most often — brackets, hubs, flanges, cams, and levers — and then covers material selection, heat treatment, tolerances, and design rules that apply across all of them. Every family is reviewed against the same four questions: what load it carries, which material fits, what tolerance the process can hold, and where the production economics break even.

Request a Quote with Drawings →


Common Structural PM Part Types

Most structural PM parts fall into a handful of families with shared load patterns and design rules. The five families below account for the majority of structural PM volume; the sections after them cover additional structural part types we produce regularly.

Brackets and Structural Supports

PM brackets and supports provide mounting surfaces, spacer functions, or structural bridges in assemblies. They compete most directly with die castings and stamped-and-welded fabrications.

Typical applications:

  • Sensor mounting brackets
  • Bearing support housings
  • Motor end caps and brush holders
  • Structural spacers in precision assemblies

PM advantage over die casting: Tighter dimensional tolerances as-sintered, no porosity-related leak paths for oil or grease interfaces, and faster production cycle time.

PM advantage over stamped fabrications: Complex 3D cross-sections achievable without secondary forming or welding.

Load profile. A bracket is usually a bending-dominated part: fixed at one or two mounting points, it carries the static weight of the attached component plus vibration and shock when the assembly moves. Stress peaks at mounting holes and at section changes, so generous radii and adequate density matter as much as nominal wall thickness. On vehicle-mounted brackets, fatigue under vibration is usually the design driver rather than static strength.

Materials and tolerances. Light-to-moderate brackets are typically FC-0205 or FC-0208; where vibration or occasional impact is expected, FN-0205 provides better toughness for a modest cost increase. A density target around 7.2 g/cm³ suits most loaded brackets. As-sintered tolerances of ±0.10–0.20 mm are usually adequate for mounting faces, while locating datums and critical hole positions can be machined to a ±0.03 mm class after sintering.

Production economics. Net-shape pressing consolidates multi-piece stamp-and-weld fabrications into a single part, eliminating welding fixtures and the leak paths that joints create. PM tooling pays back above roughly 5,000 parts per year for bracket-type geometries, and the advantage widens at 10,000 pieces and beyond. For a production example, see our aerospace structural bracket case study, where a net-shape PM bracket replaced a machined aluminum part at 50,000 units per year.

Hubs and Sleeves

Hubs are among the most common PM structural parts. The process accommodates the cross-sectional variation — hub boss, flange disc, central bore — in a single pressing operation, with controlled density in each section.

Typical applications:

Design notes: Hub height-to-diameter ratios up to approximately 2.5:1 are typical. Multiple levels (boss, flange, shoulder) require multi-action tooling but are standard PM practice.

Load profile. A hub transmits torque through its bore — by splines, keyways, or press-fit — while the boss section passes that torque into the mating part. Working stresses are torsional shear plus hoop stress at the bore, and the fatigue-critical locations are the section transitions. Density at or above 7.2 g/cm³ visibly improves torsional fatigue life, which is why loaded hubs are rarely specified below that level.

Materials and tolerances. FN-0205 is the workhorse for transmission and drivetrain hubs; FN-0405 is specified when the 620 MPa class as-sintered strength is needed for higher torque. Sinter-hardened grades cover hubs that must also resist wear at spline roots. Bores are held to ±0.025–0.05 mm by sizing, external splines and gear forms are pressed net-shape, and face-to-bore perpendicularity is controlled directly by die geometry.

Production economics. A multi-level hub consolidates into one pressing what would otherwise be turned from bar stock across several setups. The saving is largest on parts with internal splines or gear teeth, where machining is slow and tool wear is high; a pressed-and-sized hub typically skips all cutting operations except the bore calibration.

Flanges and Coupling Discs

Flanges are disc-shaped structural parts that clamp a joint together. The PM process forms the disc, raised hub, and bolt circle in one pressing, and sizing or light machining finishes the sealing face where the joint requires it.

Typical applications:

  • Flange couplings for shaft connections
  • Pump and compressor mounting flanges
  • Sensor and actuator mounting flanges
  • Drive flanges for axle and driveline joints

Load profile. A flange works in clamping: bolt preload squeezes the disc between mating parts, and the flange then carries torsional or bending load through the bolt circle. Stress concentrates at bolt holes, and sealing faces must stay flat under preload — which makes flatness, not just thickness, a real design requirement for any flange that closes a pressure or lubricant boundary.

Materials and tolerances. FC-0205 and FC-0208 cover most structural flanges, with FN-0405 for high-torque drive flanges. Where a flange doubles as a pressure boundary, copper-infiltrated FX steels close the interconnected porosity that would otherwise become a leak path. Faces hold 0.10–0.20 mm flatness as-sintered; seal faces and pilot diameters are machined to a ±0.03 mm class when the joint demands it.

Production economics. A hub-and-disc flange that would otherwise be fabricated by welding a boss onto a stamped disc is pressed as one sintered piece. There is no weld distortion to correct, no leak path at the weld seam, and the bolt circle repeats from the die rather than from a drill jig.

Cam Lobes and Eccentric Parts

Cam lobes and eccentric elements require precise profile geometry, controlled hardness on the working surface, and repeatable dimensions across production batches.

Typical applications:

  • Automotive camshaft lobes (assembled camshaft design)
  • Eccentric cams for pump and valve actuation
  • Indexing cams for automation equipment
  • Textile machinery cams

Materials: FC-0208 and sinter-hardened alloys are common for cam lobes requiring surface hardness HRC 30–50. Heat treatment after sintering is an option for grades that require it.

Load profile. The cam flank sees concentrated contact stress against a flat tappet or roller follower, combined with sliding at the contact point. The lobe therefore needs a hard, wear-resistant surface over a core tough enough to absorb cyclic valve-train loads — a classic case-hardening requirement that PM handles well because the pressed density and the alloy content can be tuned independently.

Materials and hardness. FC-0208, heat-treated where needed, and sinter-hardened alloys are the standard choices; sinter-hardened lobes deliver an HRC 35–42 class hardness in the same pass as sintering. Where wear demand is highest, carburizing raises the flank to HRC 58–62 with a 0.4–0.8 mm case while the core stays at HRC 30–40.

Production economics. The largest PM cam application is the assembled camshaft: PM lobes with precisely pressed profiles are fixed onto a steel tube, replacing a fully machined or cast one-piece shaft. Only the material needed for the working surfaces is alloyed and hardened, and the tube can carry oil galleries that a solid shaft cannot.

Levers convert a small input force on a long arm into a large output force on a short arm, which means bending stress peaks near the pivot and the part lives or dies on the condition of its pivot bore and contact pad. This family covers actuation levers, rocker arms, link plates, and pawl carriers.

Load profile. The pivot bore carries the highest bending moment, while the contact pad or pawl tip sees concentrated, often reversing, contact loads. Fatigue at the pivot section and wear at the pad are the two failure modes to design against, and both are addressed through material and heat treatment rather than through extra material.

Materials and tolerances. FN-0205 provides the toughness baseline for levers subject to shock or reversing loads. Where the contact pad must survive repeated engagement — a ratchet pawl is the extreme case — carburizing gives an HRC 58–62 case on a core at HRC 30–40 that still absorbs impact. Pivot bores are sized to ±0.025–0.05 mm, and the flat, uniform profile of a typical lever is close to ideal pressing geometry.

Production economics. PM levers replace stamped-and-riveted or forged-and-machined equivalents. Above roughly 5,000 parts per year, the pressed-and-sintered lever with a sized bore usually wins on total cost; below that, stamping or machining can be cheaper. See the ratchet and pawl section below for the locking elements these levers most often drive.

Bearing Housings and Seats

Bearing housings and seats require a controlled bore for bearing press-fit, precise OD for housing location, and adequate structural rigidity to resist deflection under load.

Typical applications:

  • Electric motor end shields
  • Gearbox and reducer bearing housings
  • Agricultural and industrial bearing blocks
  • Pump and compressor bearing supports

PM advantage: Die-compacted bore and OD are close to net-shape; sizing (secondary compaction) corrects bore and OD to tight tolerance without full machining.

Material and density. FC-0205 at around 7.2 g/cm³ provides the rigidity most housings need; heavily loaded seats move to FC-0208 or FN-0205, and seats that must resist fretting can be sinter-hardened to HRC 35–42.

See also: Oil-Impregnated Bearings if the application requires a self-lubricating PM bearing rather than a housing.

Ratchet and Pawl Components

Ratchet wheels, pawls, and locking elements require controlled tooth geometry, adequate surface hardness, and precise bore or shaft interface.

Typical applications:

  • Seat recliner mechanisms
  • Window regulator ratchet components
  • Lifting and locking mechanisms
  • Power tool clutch elements

Materials and hardness. Ratchet wheels and pawls are usually FC-0208 or sinter-hardened grades; teeth are carburized to HRC 58–62 when the locking function sees frequent engagement, and the bore that indexes the wheel is sized to ±0.025–0.05 mm.

Connecting and Transmission Parts

Connecting rods, push rods, shift forks, and linkage elements are structural PM parts that transmit force under dynamic or cyclic loading.

Typical applications:

  • Powder metal connecting rods (fracture-split design)
  • Shift forks for transmission and transfer case
  • Push rods and lifter bodies
  • Suspension linkage components

Materials: FN-0205, FN-0405, and sinter-hardened grades for fatigue-critical connecting and transmission components.

Density and fatigue. Fatigue-critical rods are specified at the highest density the press-and-sinter route allows, with FN grades chosen for their toughness margin. Fracture-split connecting rods depend on consistent sintered microstructure to break predictably along the cap interface — a PM-specific capability that machining cannot replicate.


Material Selection for Structural PM Parts

Material selection starts with the load case, not the price list. The four families below cover the structural grades we run most often; each trades strength, toughness, hardenability, and cost differently. Minimum strength figures refer to the as-sintered condition specified under MPIF Standard 35 and ASTM B783 designation rules.

MaterialTensile Strength (typical)Best Use
FC-0205400–550 MPaLight-to-moderate load brackets, housings
FC-0208550–750 MPa (heat-treated: to 900 MPa)Cams, hubs, gear blanks — hardenable
FN-0205500–700 MPaTough transmission and drivetrain parts
FN-0405700–950 MPaHigh-strength gears, connecting rods
Sinter-Hardened700–1,000 MPaSurface-critical cams, followers
Copper-Infiltrated700–900 MPaHigh-density load-bearing parts, low porosity
316L Stainless480–650 MPaCorrosion-resistant structural components

FC family. FC-0205 and FC-0208 are iron-copper-carbon mixes: the most economical structural grades, hardenable by quench-and-temper, and the default choice for brackets, housings, and flanges without extreme toughness requirements.

FN family. FN-0205, FN-0405, and FN-0408 are iron-nickel-carbon steels, and we produce them copper-free. As-sintered, the three grades are specified to minimum strength levels of 480 MPa, 620 MPa, and 720 MPa respectively, with nickel content rising across the series. Nickel buys toughness and hardenability, which makes FN the default for drivetrain and fatigue-critical structural parts; through-hardened FN tops out at HRC 42.

FL family. FL-4405 is a pre-alloyed iron-molybdenum steel — also copper-free — built on 0.85% molybdenum powder. It delivers 400–500 MPa class strength as-sintered with excellent dimensional stability, and 860–1,000 MPa after quenching and tempering, which suits structural parts that must stay straight through heat treatment.

FX family. FX grades are copper-infiltrated steels: molten copper is drawn into the sintered pore network during a second furnace pass, pushing density toward the 7.4 g/cm³ production ceiling and closing interconnected porosity for pressure or vacuum boundaries.

See the Materials Guide for complete data tables, heat treatment options, and material comparison charts.


Heat Treatment and Surface Hardening

Sintered steel responds to the same heat treatments as wrought steel, with porosity and alloy content shaping the outcome. The five paths below cover essentially every structural PM requirement we see in RFQs; the right choice depends on whether the wear surface, the core, or the dimension is the critical element.

Treatment pathTypical outcomeBest suited for
As-sintered480–720 MPa class strength (FN series)General structural parts without wear-critical surfaces
Sinter-hardeningHRC 35–42 as-sinteredCams, levers, ratchets needing wear resistance in one pass
Through-hardening (FN)up to HRC 42Hubs and levers under higher static loads
Carburizingcase HRC 58–62, 0.4–0.8 mm case, core HRC 30–40Cam flanks, ratchet teeth, lever contact pads
Copper infiltration (FX)density to 7.4 g/cm³, sealed porosityPressure-tight flanges and housings

Sinter-hardening deserves emphasis because it collapses two operations into one: the part leaves the sintering furnace already hardened, with HRC 35–42 through the section and no separate quench step to distort it. Carburizing takes the opposite route, adding a high-carbon case for concentrated contact loads while leaving a tougher core; the dimensional growth is small but predictable, and drawings should call out whether the case depth applies to the flank, the tooth, or the full profile. For the full process picture, see Sintering and Heat Treatment.


Tolerances and Secondary Operations

As-sintered dimensional capability (typical, non-critical cross-sections):

  • OD/bore: ±0.10–0.20 mm
  • Length / height: ±0.15–0.25 mm
  • Flatness: 0.10–0.20 mm

After sizing (secondary compaction to calibrate dimensions):

  • Bore / OD: ±0.025–0.05 mm
  • Length (if sized): ±0.05–0.10 mm

After CNC machining (for critical features: threads, precision bores, ground surfaces):

  • Achievable to ±0.01–0.02 mm on machined features

Secondary operations available: CNC turning and milling, thread tapping, broaching, grinding, heat treatment, surface treatment (zinc phosphate, steam, plating, passivation).

Datum strategy. The most cost-effective drawings treat as-sintered surfaces as the reference for everything non-critical and reserve sizing or machining for one or two functional interfaces — typically a bore and its perpendicular face. Calling out ±0.03 mm on every dimension multiplies cost without improving the assembly, because only the mating interfaces need that class of precision.

See Secondary Machining and Surface Treatments for details.


Design Guidelines for Structural PM Parts

Most structural PM design rules follow from one fact: the part is formed by axial compaction in a rigid die. Everything below flows from that single constraint, and most field failures trace back to ignoring one of these rules.

  • Keep wall and rib sections as uniform as the function allows; heavy sections beside thin ones create density gradients that show up later as distortion or local weakness.
  • Add corner radii generously; sharp internal corners concentrate stress in service and accelerate die wear in production.
  • Put functional geometry — bores, splines, hubs, gear teeth — parallel to the pressing direction; features perpendicular to pressing require secondary operations.
  • Respect the hub height-to-diameter guidance of about 2.5:1; taller features need multi-action tooling and a cost review.
  • Design the tolerance budget in three tiers: ±0.10–0.20 mm as-sintered, ±0.025–0.05 mm after sizing, and a ±0.03 mm class only on machined features.
  • Specify density by function: 7.2 g/cm³ suits most structural duty, and the 7.4 g/cm³ ceiling should be reserved for fatigue-critical or pressure-tight parts where the extra density earns its cost.

For a complete rule set with drawings, see the DFM Guide. If a current design is failing in service, the failure-mode walkthroughs in PM Design Failure Case Studies usually identify which rule was broken.


PM vs Alternatives for Structural Parts

PM does not win every structural application. The comparison below reflects how the four processes typically trade off at production volumes of 10,000 parts per year and above; low volumes almost always favor machining because PM carries fixed tooling cost.

CriterionPMDie CastingMachined Bar StockForgings
Tooling costMediumMedium–HighNoneHigh
Unit cost at 25K pcsLow–MediumLow–MediumHighHigh
Material density85–95%~100%100%100%
Dimensional consistencyHighMediumHigh (machined)Medium
Design complexityMediumHighLow–MediumLow
Lead time (samples)4–8 weeks6–10 weeks1–2 weeks8–12 weeks
Secondary machiningLow–MediumMediumHighMedium

For a detailed comparison, see: PM vs Die Casting, PM vs Forging, PM vs Machined Bar Stock.


Production Capability at SinterWorks

SinterWorks was founded in 2010 and has produced PM components for 16 years, shipping 2,600 tons annually from 36 presses rated 6–400 tons. We are a Kia SQ-approved supplier, and our engineering team provides DFM review, PPAP documentation, and English-language support from first drawing to production release.

Structural parts are reviewed at the quote stage by engineers who run the presses, not by a sales desk. Miniature structural components for precision electronics are equally in scope — see our camera module structural case study for what small precision parts demand in tolerance and handling. Quotes return in 3–5 working days with a manufacturability review; send the part drawing, the expected loads, and the annual volume.

Get a 3–5 Day Quote →


Quality and Documentation

Our structural PM parts are produced under ISO 9001:2015 and ISO 9001:2015 quality systems. Standard documentation includes:

  • First article dimensional reports
  • Material certifications (chemistry, hardness)
  • Process qualification records
  • PPAP package support (for automotive programs)

See PPAP Support and Quality Inspection for details.


Frequently Asked Questions

What is the minimum production volume for structural PM parts?

PM tooling investment makes the process most economical above 5,000 parts per year. Below that threshold, machined bar stock or casting may have lower total cost. At 10,000+ parts per year, PM typically offers a clear cost advantage over machined alternatives.

Can PM structural parts handle impact loading?

Standard PM grades (FC-0205, FC-0208) have limited ductility and are not ideal for high-impact applications. For impact-tolerant structural PM, nickel-steel grades (FN-0205, FN-0405) or heat-treated sinter-hardened alloys provide better toughness. For very high impact, forging or wrought material may be more appropriate.

How are critical bore tolerances held in PM structural parts?

Bore tolerances are controlled by sizing — a secondary compaction step that compresses the sintered part in a precision die to calibrate bore and OD dimensions. Sizing can hold bore tolerances to ±0.025–0.05 mm without full machining.

What surface treatments are available for structural PM parts?

Common options: zinc phosphate (corrosion protection + paint adhesion), steam treatment (improved hardness and mild corrosion resistance), zinc plating, nickel plating, and carburizing or through-hardening for wear surfaces. See Surface Treatments for a complete overview.

Can PM structural parts be welded or joined to other components?

PM parts can be joined by press-fit, brazing, and adhesive bonding. Fusion welding is more difficult due to porosity and variable density; it is done in some applications but requires process development. Consult engineering before specifying a welded PM assembly.

Which material grade should I specify for a load-bearing bracket?

Start from **FC-0205** and move up only when the load case demands it: **FC-0208** when the bracket must be hardened, **FN-0205** when vibration or impact toughness governs, and **FN-0405** or a sinter-hardened grade when fatigue requirements push past the FN-0205 level. The density target matters as much as the grade — specify **7.2 g/cm³** for loaded brackets and reserve the **7.4 g/cm³** ceiling for fatigue-critical or pressure-tight parts.

Can structural PM parts be heat treated after sintering?

Yes. Sintered steels respond to through-hardening, carburizing, and quench-and-temper treatment much like wrought steels, and sinter-hardening combines sintering and hardening in a single furnace pass. Hardenability depends on alloy content: nickel-bearing FN grades through-harden to about **HRC 42**, while carburizing reaches **HRC 58–62** at the surface with a tough core at **HRC 30–40**.
